CM 1-5 A-R-A-E-AVBE F-A-A-N [96935404]
CM 1-5 A-R-A-E-AVBE F-A-A-N [96935404]
Grundfos
Prezzo di listino
€591,20 EUR
Prezzo di listino
€739,00 EUR
Prezzo scontato
€591,20 EUR
Prezzo unitario
/
per
Price excluding VAT
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro

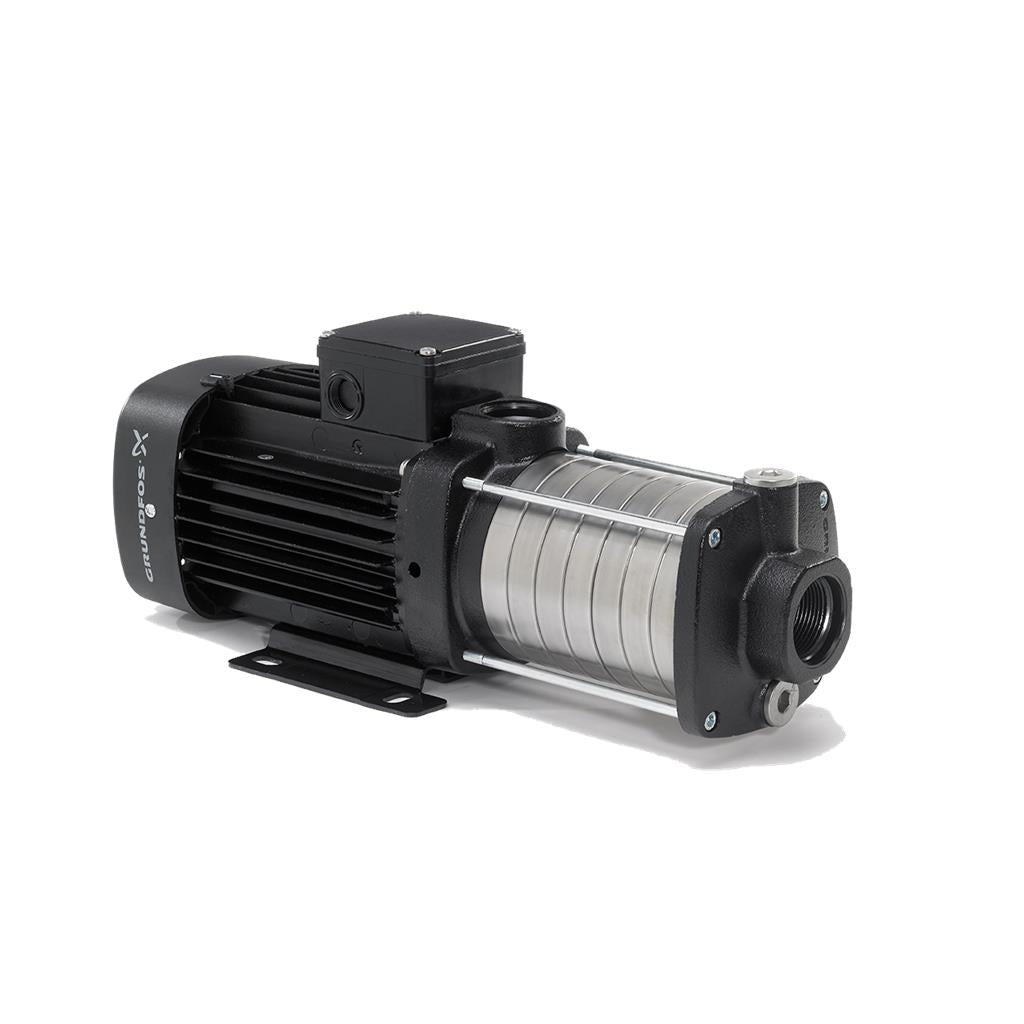

Pompa centrifuga compatta, affidabile, orizzontale, multistadio, con bocca di aspirazione radiale e bocca di scarico. L'albero, le giranti e le camere sono realizzati in acciaio inox. Le parti dell'ingresso e dello scarico sono in ghisa. La tenuta meccanica è un O-ring di tipo speciale, non bilanciato. Il collegamento delle tubazioni è tramite filettature interne Whitworth, Rp (ISO 7/1). La pompa è dotata di un motore asincrono 3 fasi, raffreddato ad aria, montato su piedi di appoggio.
Specs Table
| Controls: | |
| Frequency converter: | None |
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |

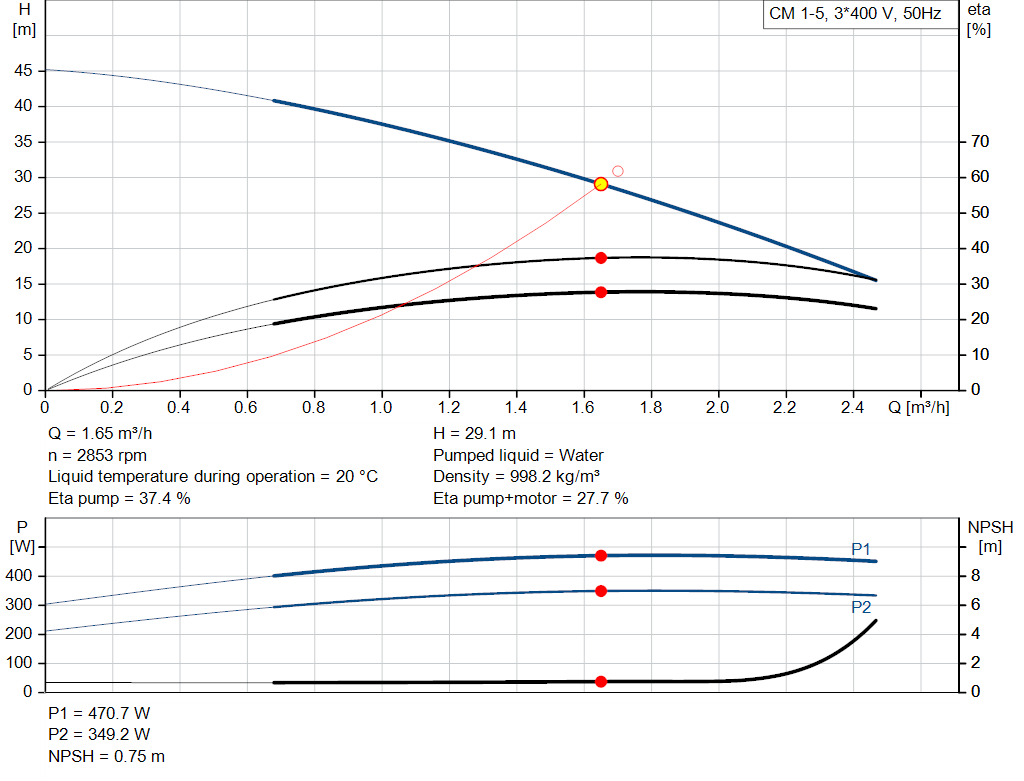

| Rated flow: | 1.7 m³/h |
| Rated head: | 30.92 m |
| Primary shaft seal: | AVBE |
| Code for shaft seal: | AVBE |
| Approvals: | CE,EAC,UKCA |
| Approvals for drinking water: | ACS,NSF61 |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-200 | |
| ASTM A48-25A | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Installation: | |
| Range of ambient temperature: | -20 .. 55 °C |
| Maximum operating pressure: | 10 bar |
| Max pressure at stated temp: | 10 bar / 40 °C |
| 6 bar / 90 °C | |
| Type of connection: | Rp |
| Size of inlet connection: | 1 inch |
| Size of outlet connection: | 1 inch |
| Outlet position: | 12 |
| Electrical data: | |
| Motor standard: | IEC |
| Frame size: | 71A |
| IE efficiency class: | IE2 |
| Rated power - P2: | 0.46 kW |
| Mains frequency: | 50 Hz |
| Suitable for 50/60 Hz (Yes/No): | N |

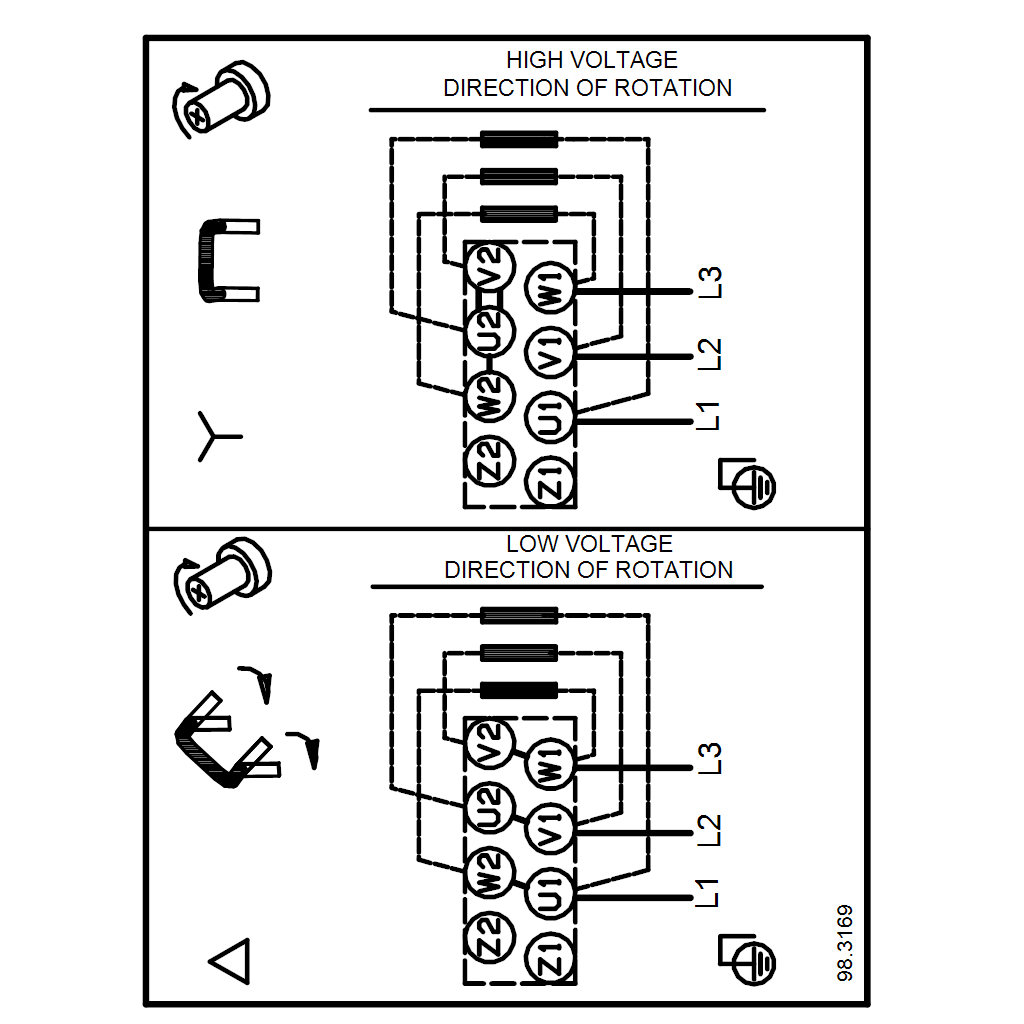

| Rated voltage: | 3 x 220-240D/380-415Y V |
| Service factor: | 1.00 |
| Rated current: | 2,0-2,2/1,0-1,2 A |
| Starting current: | 490-530 % |
| Rated speed: | 2770-2820 rpm |
| Enclosure class (IEC 34-5): | IP55 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Cable included (Yes/No): | N |
| Others: | |
| Terminal box position: | 12 |
| Minimum efficiency index, MEI ≥: | 0.7 |
| Net weight: | 11.8 kg |
| Gross weight: | 14.3 kg |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
