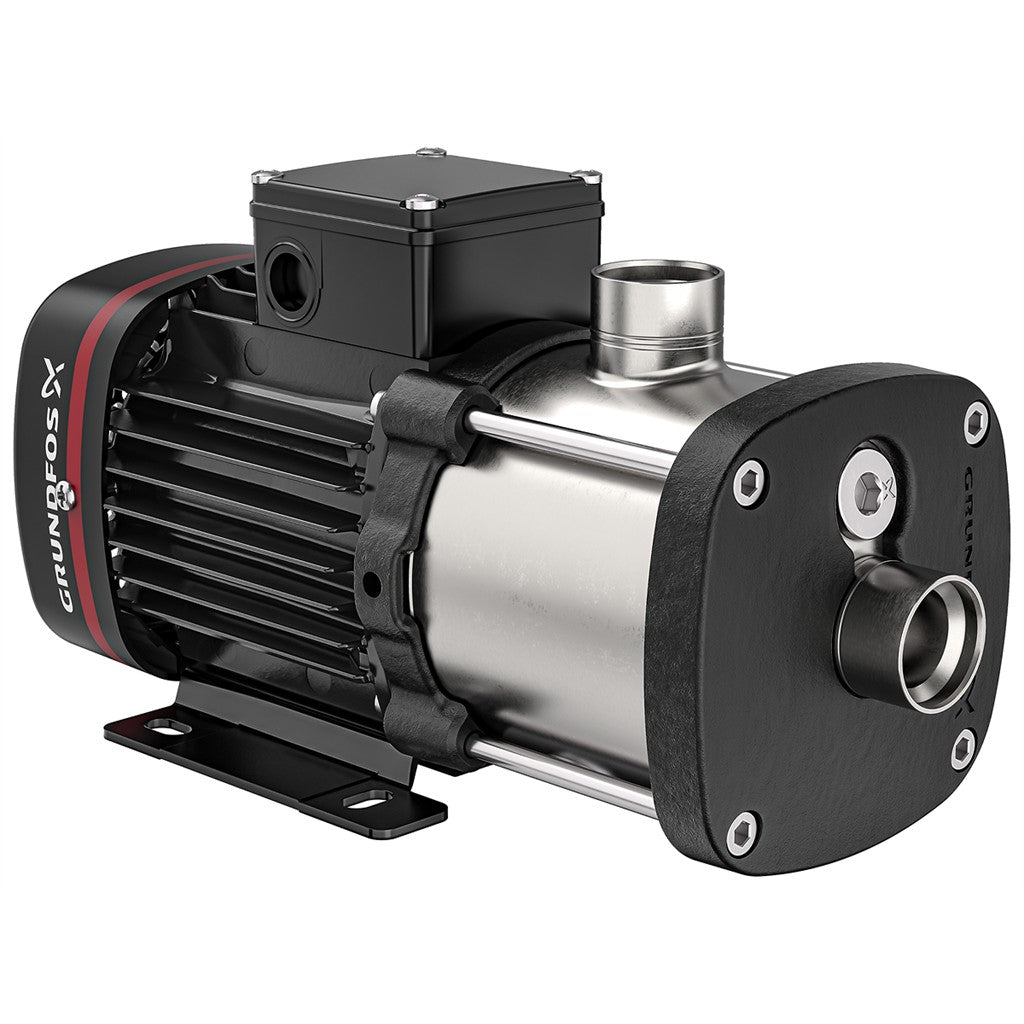

Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. Pump materials in contact with the liquid are in high-grade stainless steel. The mechanical shaft seal is a special designed, unbalanced O-ring seal. Pipework connection is via internal Whitworth pipe threads, Rp (ISO 7/1). The pump is fitted with a 3-phase, foot-mounted, fan-cooled asynchronous motor.
Specs Table
Controlli:
Posizione morsettiera:
12
Frequency converter:
None
Liquido:
Liquido pompato:
Acqua
Gamma temperatura del liquido:
-20 .. 120 °C
Temperatura del liquido durante il funzionamento:
20 °C
Densità:
998.2 kg/m³
Tecniche:
velocità della pompa su cui sono basati i dati della pompa:
