CR 20-8 A-F-A-V-HQQV [96504521]
CR 20-8 A-F-A-V-HQQV [96504521]
Grundfos
Prezzo di listino
€6.605,53 EUR
Prezzo di listino
€9.859,00 EUR
Prezzo scontato
€6.605,53 EUR
Prezzo unitario
/
per
Price excluding VAT
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro

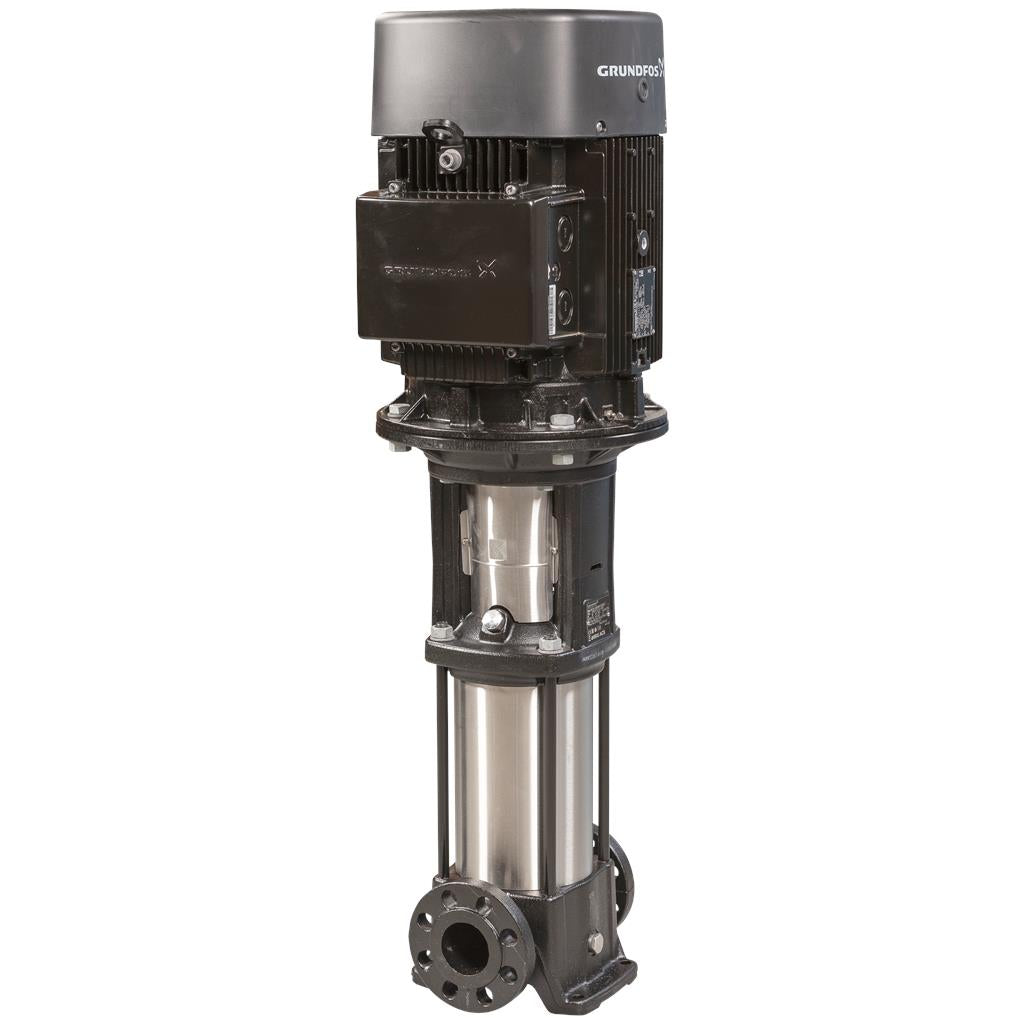

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron – all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via DIN flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

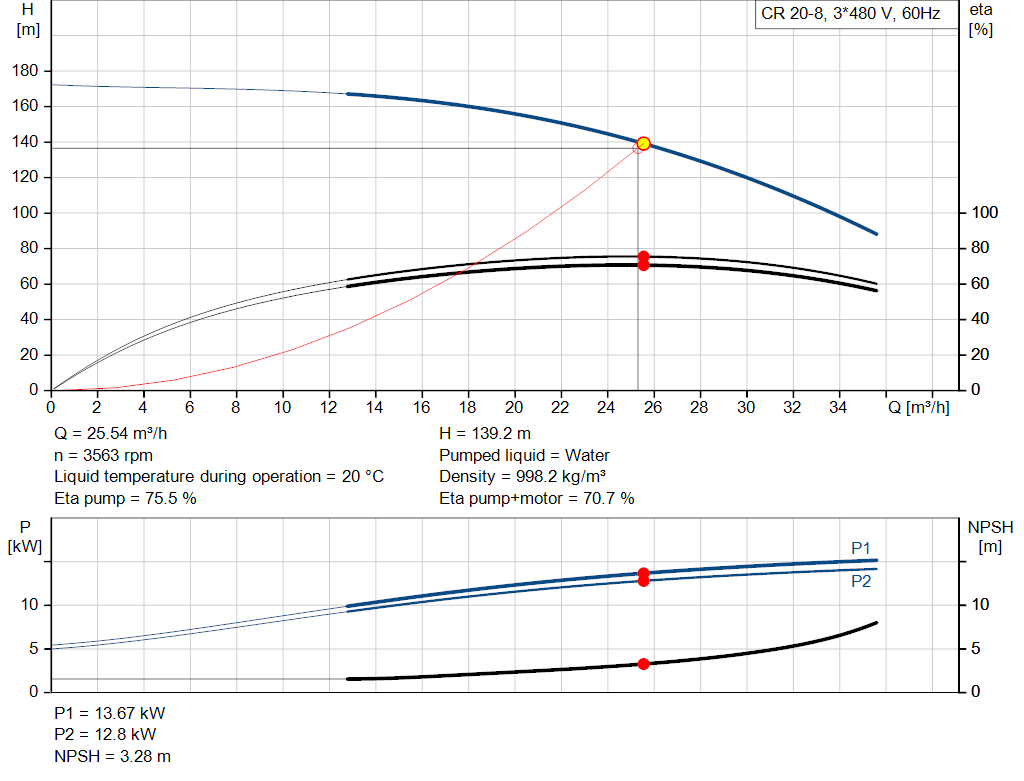

| Pump speed on which pump data are based: | 3528 rpm |
| Rated flow: | 25.3 m³/h |
| Rated head: | 136.6 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQV |
| Code for shaft seal: | HQQV |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Cast iron |
| EN 1561 EN-GJL-200 | |
| ASTM A48-25B | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type of connection: | DIN |
| Size of inlet connection: | DN 50 |
| Size of outlet connection: | DN 50 |
| Pressure rating for connection: | PN 25 |
| Flange size for motor: | FF300 |

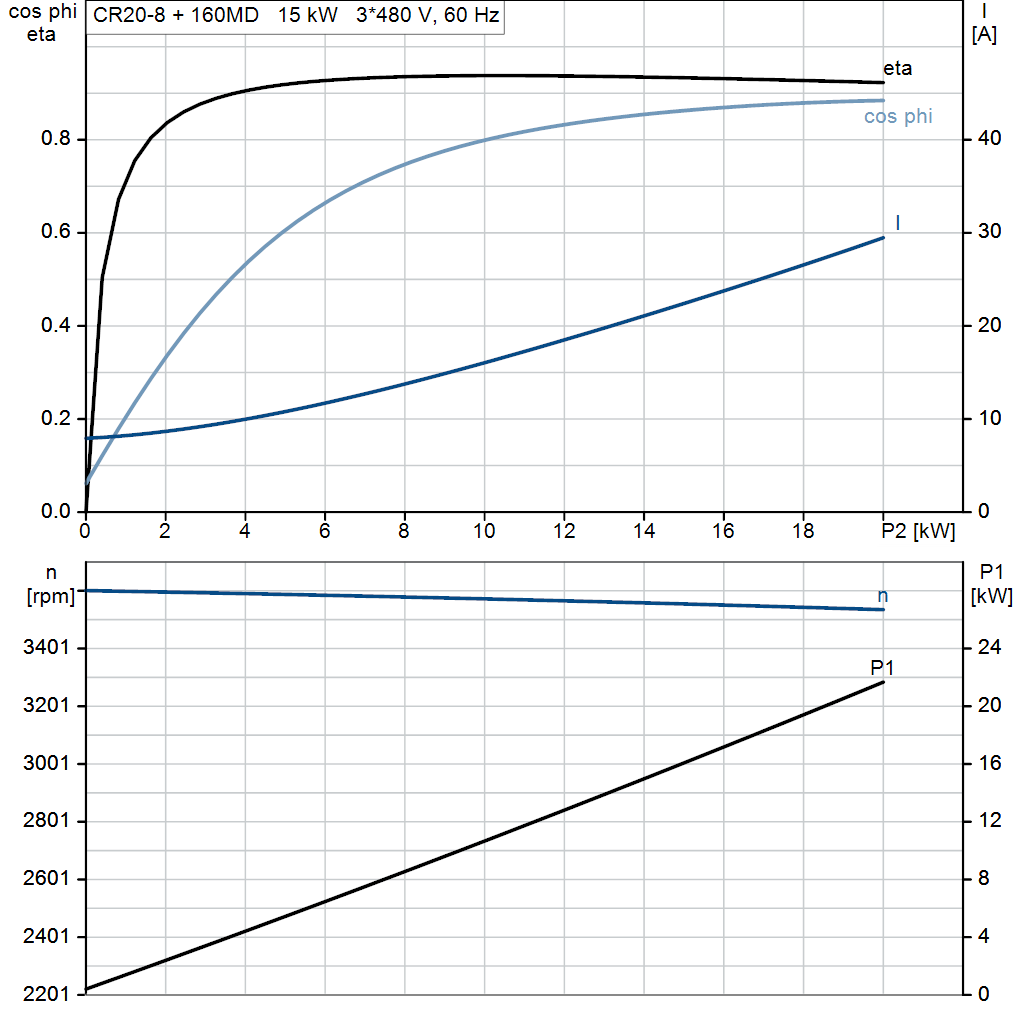

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 160MD |
| Rated power - P2: | 15 kW |
| Power (P2) required by pump: | 15 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 400-480D/690Y V |
| Rated current: | 26,9-22,4/15,6 A |
| Starting current: | 640-890 % |
| Cos phi - power factor: | 0.89-0.86 |
| Rated speed: | 3530-3550 rpm |
| IE Efficiency class: | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load: | 91.0 % |
| Motor efficiency at 3/4 load: | 91.9-92.3 % |
| Motor efficiency at 1/2 load: | 92.9-91.3 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85U17526 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 158 kg |
| Gross weight: | 186 kg |
| Shipping volume: | 0.488 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
