CR 95-1-1 A-F-A-E-HQQE [99141735]
CR 95-1-1 A-F-A-E-HQQE [99141735]
Grundfos
Prezzo di listino
€4.855,20 EUR
Prezzo di listino
€6.069,00 EUR
Prezzo scontato
€4.855,20 EUR
Prezzo unitario
/
per
Price excluding VAT
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro

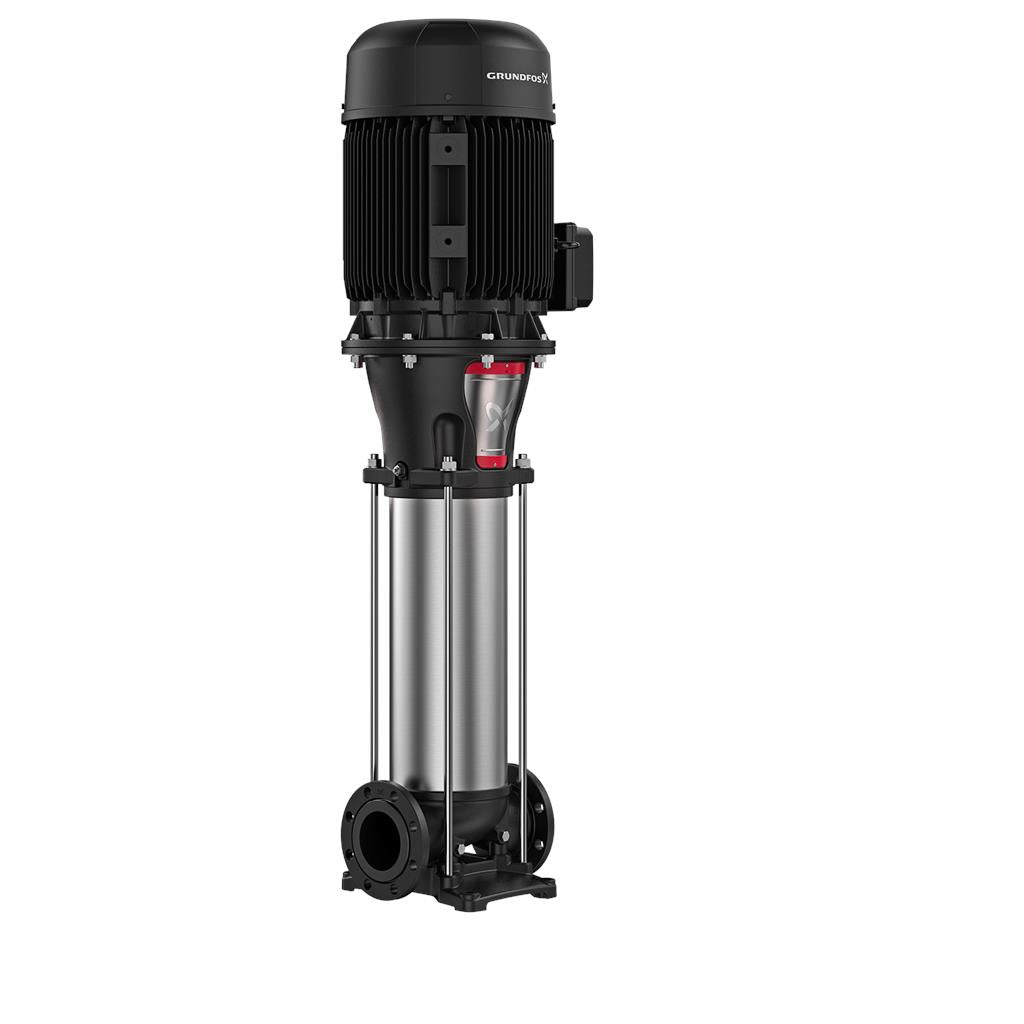

Pompa centrifuga verticale, multistadio con bocche di aspirazione e mandata sullo stesso livello (in linea). La testa della pompa e la base sono in ghisa - tutte le altre parti a contatto con il liquido sono in acciaio inox. La tenuta meccanica della cartuccia Grundfos assicura un'elevata affidabilità, maneggio sicuro e facile manutenzione e accesso. La trasmissione della potenza avviene tramite accoppiamento rigido. Il collegamento alle tubazioni è tramite flange DIN. La pompa è dotata di un motore asincrono 3 fasi, raffreddato ad aria, montato su piedi di appoggio.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

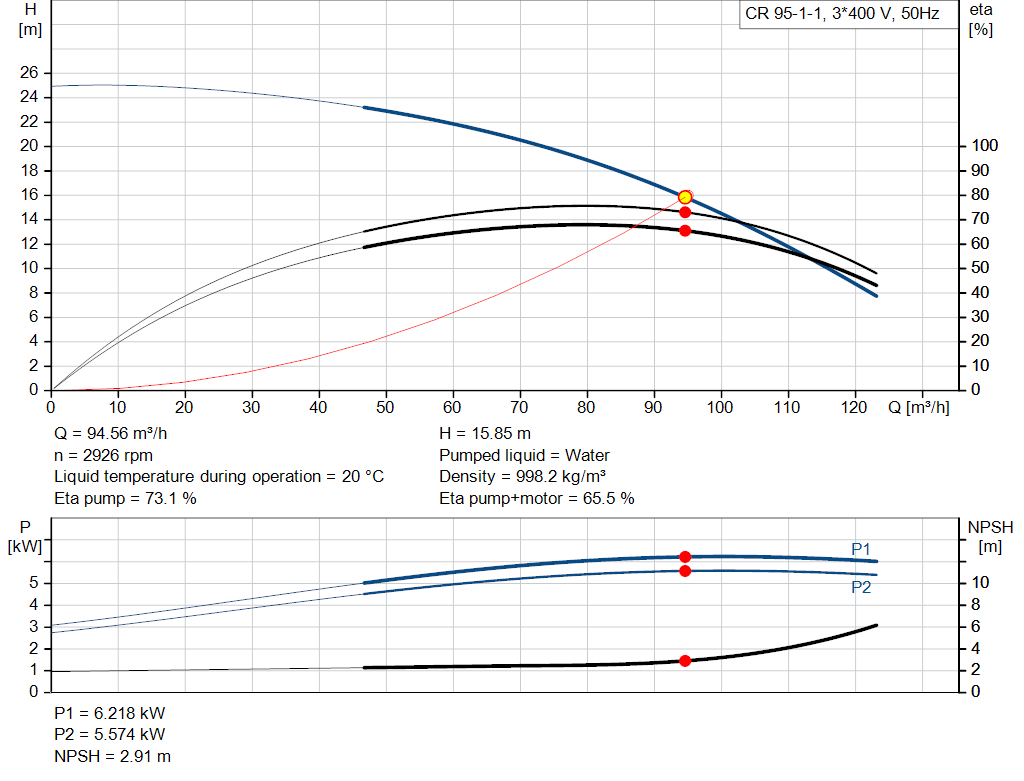

| Pump speed on which pump data are based: | 2938 rpm |
| Rated flow: | 95 m³/h |
| Rated head: | 16 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | ACS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Ductile cast iron |
| EN 1563 EN-GJS-500-7 | |
| ASTM A536-84 65-45-12 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | WC/WC |
| Support bearing: | Graflon |
| Material certified according to: | European standards |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 16 bar |
| Max pressure at stated temp: | 16 bar / 120 °C |
| Type of connection: | DIN |
| Size of inlet connection: | DN 100 |
| Size of outlet connection: | DN 100 |
| Pressure rating for connection: | PN 16 |
| Flange size for motor: | FF265 |

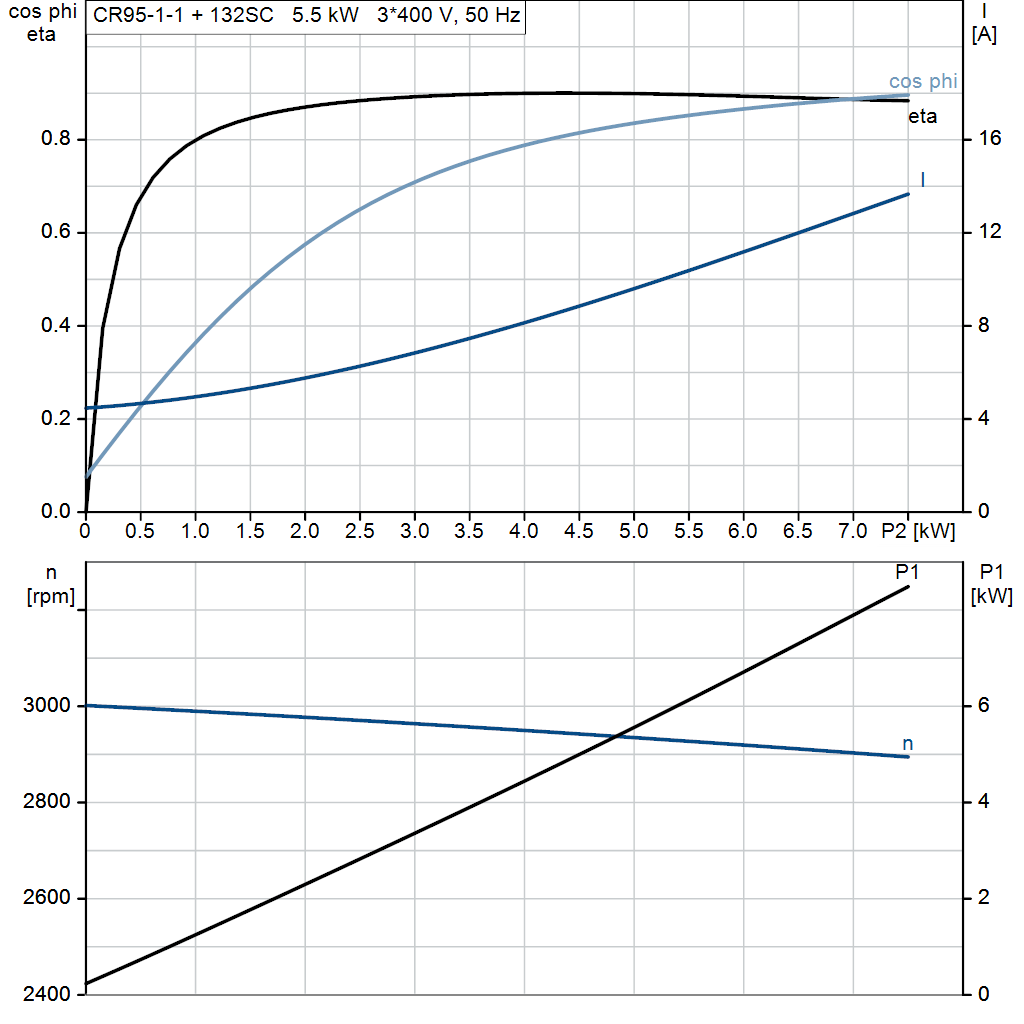

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 132SC |
| Rated power - P2: | 5.5 kW |
| Power (P2) required by pump: | 5.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-415D V |
| Rated current: | 11 A |
| Starting current: | 1080-1180 % |
| Cos phi - power factor: | 0.87-0.82 |
| Rated speed: | 2920-2940 rpm |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 89.2 % |
| Motor efficiency at 3/4 load: | 90.0-89.8 % |
| Motor efficiency at 1/2 load: | 89.6-88.4 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85U17417 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.70 |
| Net weight: | 131 kg |
| Gross weight: | 174 kg |
| Shipping volume: | 0.611 m³ |
| Danish VVS No.: | 386030011 |
| Finnish LVI No.: | 4925532 |
| Thrust handling device (Yes/No): | N |
| Country of origin: | DK |
| Custom tariff no.: | 84137075 |
