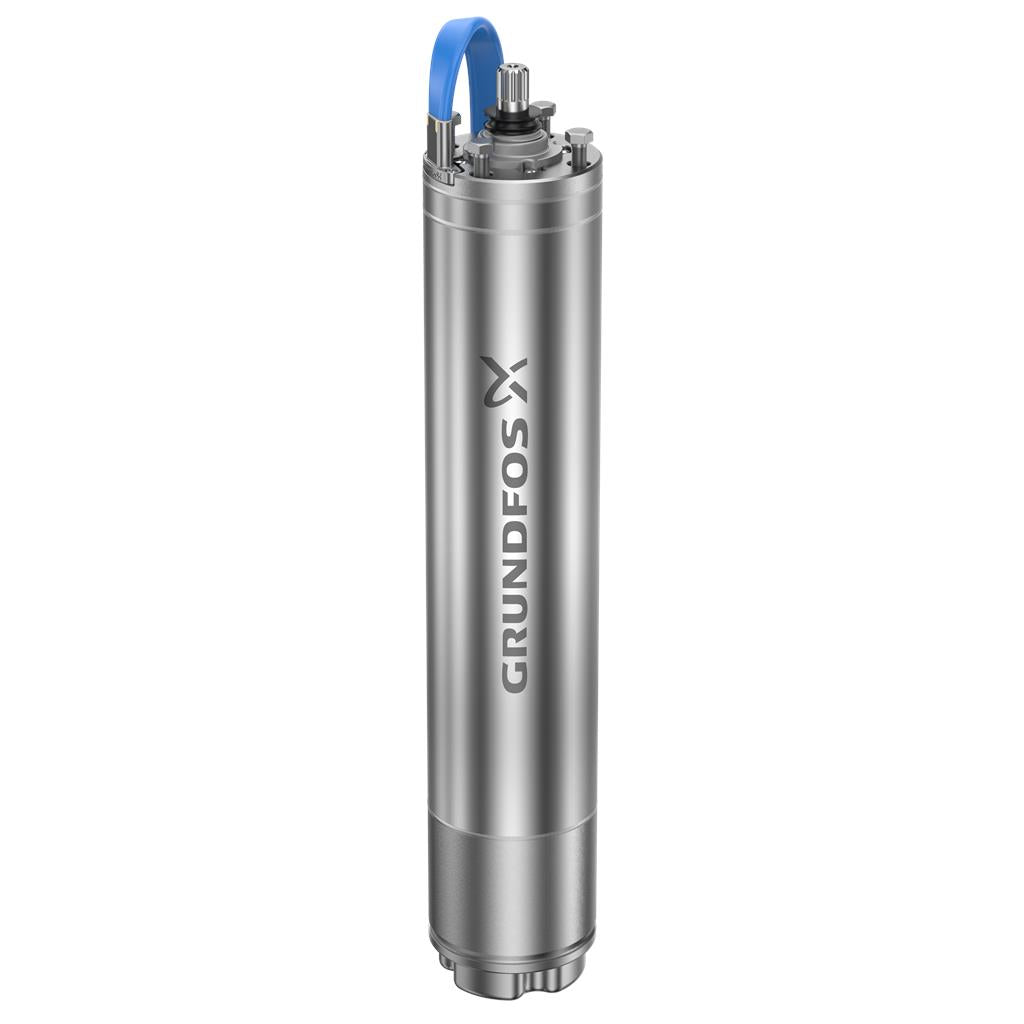

MS6000T40 [96649740]
MS6000T40 [96649740]
Grundfos
Prezzo di listino
€4.256,80 EUR
Prezzo di listino
€5.321,00 EUR
Prezzo scontato
€4.256,80 EUR
Prezzo unitario
/
per
Price excluding VAT
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Il motore è con alimentazione 3-fase, di tipo incapsulato, con parasabbia, con cuscinetti lubrificati dal liquido pompato e con diaframma per la compensazione della pressione.
Specs Table
| Liquid: | |
| Max liquid t at 0.15 m/sec: | 40 °C |
| Technical: | |
| Shaft seal for motor: | CER/CARNBR |
| CE approved (Yes/No): | Y |
| Motor version: | T40 |
| Materials: | |
| Motor: | Stainless steel |
| DIN W.-Nr. 1.4301 | |
| AISI 304 | |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Motor diameter: | 6 inch |
| Electrical data: | |
| Motor type: | MS6000 |
| Rated power - P2: | 18.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Rated current: | 42.0-41.0-41.5 A |
| Starting current: | 510-560-580 % |
| Cos phi - power factor: | 0.85-0.82-0.79 |
| Rated speed: | 2860-2880-2890 rpm |
| Rated full-load torque: | 61.5 Nm |
| Locked-rotor torque: | 150-170-190 % |
| Breakdown torque: | 240-280-310 % |
| Moment of inertia: | 0.0084 kg m² |
| Axial load max: | 27 kN |
| Start. method: | direct-on-line |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in temp. transmitter: | yes |
| Winding resistance: | 0.620 Ohm |
| Windings: | Enamelled |
| Others: | |
| Net weight: | 58 kg |
| Danish VVS No.: | 388339618 |
| Country of origin: | HU |
| Custom tariff no.: | 85015230 |
