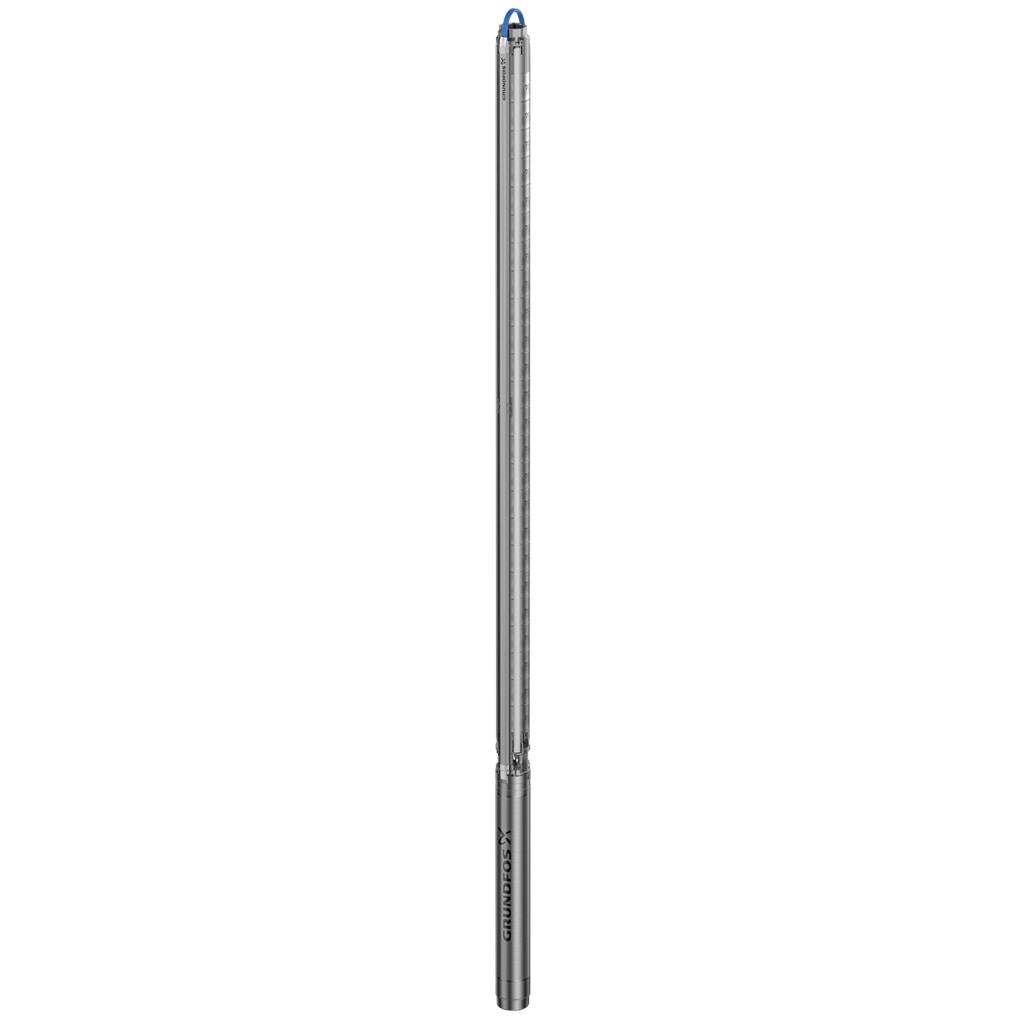

SP 14-13 [98809288]
SP 14-13 [98809288]
Grundfos
Prezzo di listino
€2.913,40 EUR
Prezzo di listino
€4.162,00 EUR
Prezzo scontato
€2.913,40 EUR
Prezzo unitario
/
per
Price excluding VAT
Spese di spedizione calcolate al check-out.
Impossibile caricare la disponibilità di ritiro
Pompa sommersa per pozzi, adatta per il pompaggio di acqua pulita. Può essere installata in orizzontale o in verticale. Tutti i componenti in acciaio sono stati realizzati in acciaio inox, EN 1.4301 (AISI 304), che garantisce elevate proprietà anticorrosive. Questa pompa è omologata per acqua potabile.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 14 m³/h |
| Rated head: | 56.2 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for motor: | CE,EAC,C_UL_US_NSF372MOROCCO,UKCA,SEPRO,RCM |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 7.9 bar |
| Type of connection: | Rp |
| Size of connection: | 2 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 105 mm |
| Electrical data: | |
| Motor type: | MS4000 |
| Motor flange design: | NEMA |
| Rated power - P2: | 3 kW |
| Power (P2) required by pump: | 3 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 7.7-7.9-8.1 A |
| Starting current: | 430-450-460 % |
| Cos phi - power factor: | 0.86-0.81-0.77 |
| Rated speed: | 2830-2850-2870 rpm |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Length of cable: | 2.5 m |
| Power cable type: | FLAT |
| Motor No: | 7C193508 |
| Windings: | Enameled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.50 |
| Net weight: | 31.4 kg |
| Gross weight: | 37 kg |
| Shipping volume: | 0.068 m³ |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
